Topic: EC DISTRIBUTING PARTS

[George Herrin]

EC DISTRIBUTING
2950 HWY 48 SOUTH
DICKSON TN.
PH.615-446-6807
FAX 615-446-9418



UNDERSTAND PRICES LISTED ARE SUBJECT TO CHANGE WITHOUT ANY NOTIFICATION HERE. Check website for the latest on parts and prices. www.eccarburetors.com

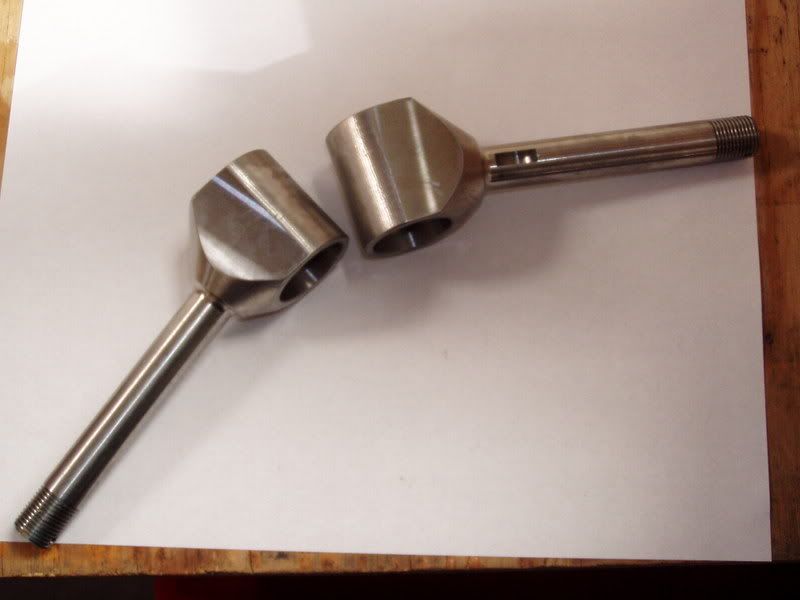

EC DISTRIBUTING universal front axle assy fits many applications. Was designed for a direct fit for MTD and Murray wide body chassis. Will build to your specifications. Complete axle as you see it above 16" center beam works with 6x6 to 6x7.25 rims.  Axle pictured above is with the very new billet spindles.
FCRP-4058      As pictured above less front hubs   245.00
FCRP-4058-1   As pictured above With front hubs  265.00

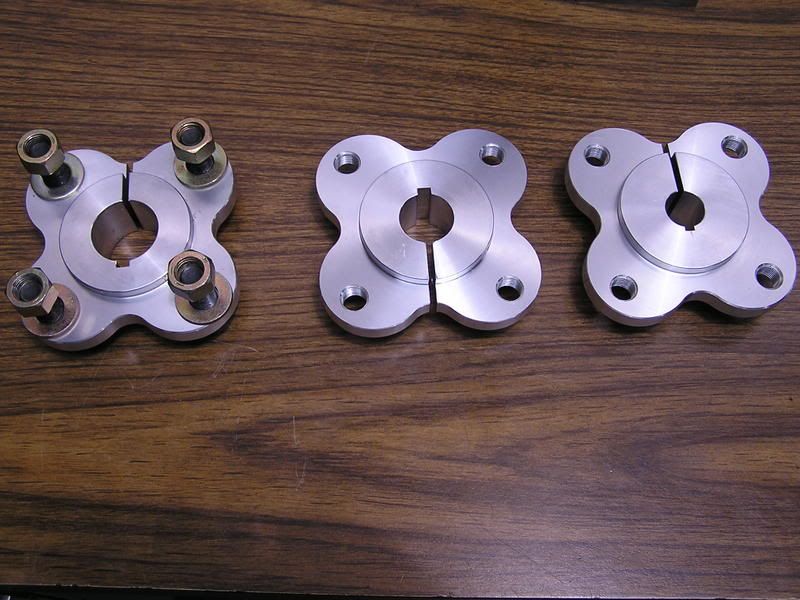

Rear 4 on 4 billet aluminum hubs complete with hardware.
FCRP-4074   3/4"    axles    30.00ea.
FCRP-4075   1"        axles   30.00ea.
FCRP-4076    1-1/4" axles   30.00ea




First picture is ground side Second picture is engine side will have a steel center hub with with a 1/4 5 hole blot pattern and two set screws. Designed to be able to remove the pulley yet leave hub in place.
The trans/transzxle pulley's will be all aluminum including hub and all one piece.

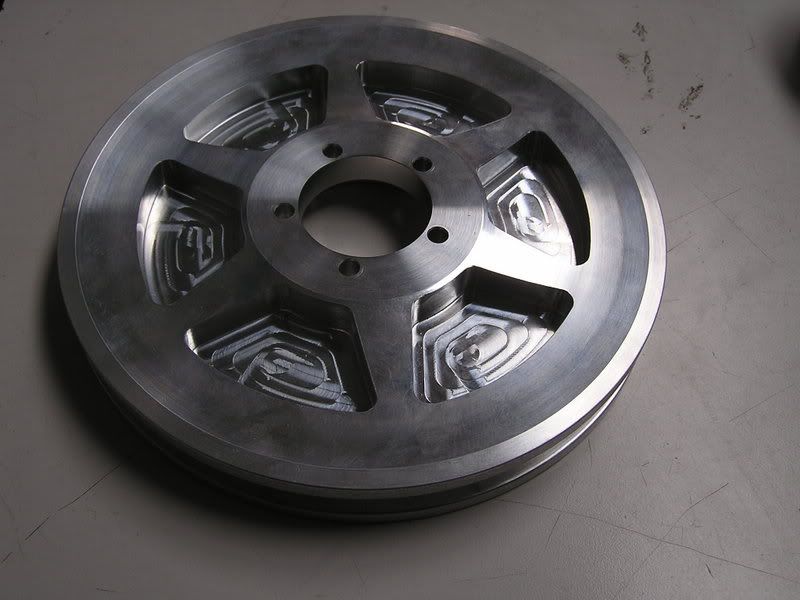

BILLET ALUMINUM BILLET PULLEYS
FCRP-4071   8" motor puley                                                                          Price $59.95
FCRP-4072   6" motor Pulley                                                                         Price $59.95
1" bore hub with mounting hardware for 8" and 6" pulleys     Price $18.95
FCRP-4077   5" trans/tranny pulley                                                               Price $49.95
FCRP-5078   4" trans/tranny pulley                                                               Price $42.95



Pictured is a walbro on a 12 hp Briggs engine this is our Dominator series carbs. We have these ready on the shelf along with a tecumseh carb for the 8 HP and for the V-twins. specify which engine when calling. We will build a carb to your engine call for pricing.

Walbro Briggs Dominator       239.00ea.
Tecumseh Dominator            239.00ea.
Cutom built carbs                 call for Pricing



FCRP-4070K   Billet Clutch assy. complete with
belt giudes and mounting hardware      129.00



This is the needle kit we sell in order for you to make your high side adjustable. $10.00


This is our tecumseh single or v-twin carb single comes with match airfilter adapter. These are massaged for optimum flow and jetting is changed. Want different jets to experiment with ask. They only fit the EC built carbs.                       239.00 ea.


Fits carburetor in above picture                     12.95

316VS Briggs Walbro filter adapter                  12.95

641   K&N 10* Air Filter for the above adapters 14.95


Fits the Tecumseh V-twins. comes with mounting bolts              42.95



Fits the two barrel Vanguards and most other brands that use the
two barrel carbs                                                                       42.95


Fits Filter adapters FCRP 4056 and 4057 (both twin Filter adapters         42.95




This is our new hub and sprocket sets for the 700 or any tranny using the 32 or 9 spline shafts.
FCRP-4084  31 spline hub                 $19.95
FCRP-4085    9 spline hub                 $21.95
FCRP-4086   12 tooth sprocket          $17.95
FCRP-4087   13 tooth sprocket          $17.95
FCRP-4088   14 tooth sprocket          $18.95
FCRP-4089   15 tooth sprocket          $18.95
FCRP-4090   16 tooth Sprocket          call for pricing Now available
FCRP-4091   17 tooth Sprocket          Call for pricing NOW Available


Turf Pro rear tires 16x7.5x8 .

Turf Master front tires 13x6.5x6 25.00ea.

Turf Master 16x7.5x8 4ply rear tires in stock call for pricing, I don't remember....

True roll 6.5x6 Aluminum 3 bolt front rims .

True roll 7.25x6 Aluminum 3 bolt front rims .


Here is the single OHV rockers, 175.00 a set and are ready for shipment.   just in time for CHRISTmas orders. .






Here is the roller rockers mounted in an INTEK V-Tiwn. These are ready to go. 300.00 for a complete set.
The Vanguard are ready also look the same But I have no motor here at the time to show them installed. They too will be 300.00 for a complete set.





We have our own line of Sprockets from 42 to 50 in two teeth increments, #40 pitch split aluminum fits our new 1 1/4hub and all our goodies are now anodized red as you can see.

Pt# 501 Hub    27.50
PT# T5315-(# of Teeth) Sprocket starting at 26.00 and up.




Below is the new air filter system for the intek v-twins. You have the one billet turn up it replaces the plastic turn up on the front of the carb then it uses the vanguard adpater and filter. Total price for the whole kit 148.90. Some mods are required to the shroud area.






Here is out T-Shirts $7.00 ea. The Ec logo on front and a picture of the back logo...





Thanks to TIM RAGSDALE for being our Model.... That got him a free T

Front brakes designed to fit our front axles or any axle with a 5/8 stud simply machine a 3/16 keyway and tighten set screws. Brakes come as you see them in the picture. Brake line and master cylinder is seperate due to the many different applications and trying to save the race a dollar. Price for complete set is 420.00. That both sides. 60 cheaper than the Hegars.





Transaxle brake hat, machined for 1"axle but will also have a sleeve you use for a 3/4 inch axle. Don't have a price on it yet.







Below is the EC transmission As you can see it is a mower transmission. Price not set yet soon as we get them will let you know. I have been hammering on this one have 7 to 10 races so far, Jake has dropped the clutch till he got tired and quit and have yet to do any damage.  But here is what they look like.

OK the transmissions are IN race ready add oil and go no reverse Standard 5 speed transmission Steel input and bevel gears thrid gear is 25/25 gear set. THESE ARE NOT PEERLESS. They ARE a direct replacement.







MORE TO COME AS TIME PERMITS

[George Herrin]

We now have the 12hp copper head gaskets back in stock. .032

We also have neck braces and driving gloves.

Call for pricing.

[George Herrin]

We now have Moly Push rods for those motors using the small diameter push rods, these are 1/4 od hollow chrome molly they come in kit form 4 rods 8 tips cut rod to size insert tips . 53.00 and change. Not sure of exact price. These fit the vanguard and intek twins, We are going to also have the larger diameter rods for the single briggs and Tecumseh twins soon.....

[George Herrin]

We now have copper 28 ci ohv head gaskets available can be lightly trimmed for 31 also. I believe the pricing is 24.00 do not take this as an exact price, I do not know as of yet.

[George Herrin]

We now have front Brakes available.. Look above for  Pictures and info

[George Herrin]

Finally racers those with the Billet pulley's when you wear them out don't toss em send them in to be re-furbished. We now have the tool Finally to allow us to simply chuck it on the lathe go in face the V and like new. Only makes them about an 1/8 smaller.

[George Herrin]

Ec has a new AXLE coming out for the ARMA new Super Mod classes. For a picture of it

http://www.eccarburetors.com/store/index.php?main_page=popup_image&pID=2236

[George Herrin]

EC now has springs part#260 in stock just came thru the door. We will fill back orders as quickly as we can.

[George Herrin]

EC now has copper head gaskets for the Tecumseh V-twin part# 2202 19.80 ea. They are .032 thick.

[George Herrin]

We are out of 700's distributors are out we have also been told upon availability there will be a substantial price increase. Now for those waiting on transmissions, we can order them but they will be 275.00. OR if you can wait we will be having our own by the end of Febuary. If you can wait till then these should be priced at 200.00 or maybe even a bit less. They will have steel gears and the cases will be beefier. All parts will be interchangeable with the peerless parts except the splined shaft and gearsand Input gear and bevel. BUT all peerless parts can be transplanted into these cases. We will have transmissions and all replacement parts here towards end of Febuary. SO thats the lowdown on transmissions at this time. We are trying to help you the racers and keep the prices affordable. Some of you know and have seen them on my mowers I have been testing them. I have yet to break one. Absoluteky no leakage whatsoever. These aare some good units. I like them allot so far. In fact they were in my mowers at the ALL American. Thats where we stand right now.

[George Herrin]

Folks our jack shaft for those using the transaxle setup should be ready to go by the end of the week. Billet aluminum housing with high speed 3/4 bearings and ends of the 4140 shafts are turned down to 5/8 keyed and drilled and tapped for a bolt for pulley retenion. Will come with a 1/4 thick 13" wide C channel mount plate ALSO. Will post pictures as soon as they are done.

[George Herrin]

Transaxle brake hat pictures are posted scroll up to see them in the picture section

[George Herrin]

SCROLL UP Added a couple pictures of the EC transmission. This is the one I have been testing (trying to Break) and have yet to hurt anything. Expected arrival is March 10th. Thats EXPECTED arrival. Do not have a set price yet not till they arrive with invoices

[George Herrin]

EC TRANSMISSIONS ARE IN AND RACE READY they come with no grease just add 8oz of oil and go they have no reverse...standard 5 speed ...Steel input and bevel gears...third gear is 25/25 gear set...two key shafts. We have all the replacement parts for these transmissions also. They are a direct replacement for the peerless transmssions. 200.00 IS YOUR COST PLUS SHIPPING.

We have transmission case's hope you saved your broken peerless transmissions you can rebuild then using these cases. Top and bottom case both for 50.00 for the complete case set top and bottom. Sold as a set only. We will not seperate.

[George Herrin]

EC has some new parts for those using the 820 transaxle's. I have converted the brochure into a jpeg so you all can see it. Click on thumbnail.
